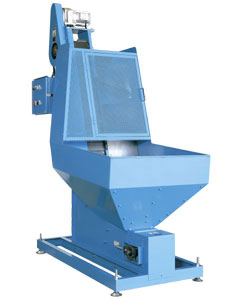

Hooper
According to user's request, various hopper for forging ring or cutting ring is available; smaller / larger diameter or narrow / wide width etc.
PartsFeeder
Part feeder is suite for the work which must not give blemish or which needs front-reverse side distinction.
Various part feeder is available as user's request.
Turntable
Various turntable is available in accordance with user's request; diameter of turn table or height of the machine etc.
Hooper
Machine Specification - Hooper
Hooper
According to user's request, adjustment of the object work size, the step interval, the number or the steps, the motor output etc. can be arranged as one-off manufacture.
And if it will be installed in the line, special electrical specification which is unified the hopper's contorolling circuit in control box of nearby machine is available.
Hooper
A06206 A06279
Example of
Target Range		 O.D.(φmm) 30 to 60 80 to 120
Width(mm) 20 to 40 15 to 30
Number of Supply Setting Cycle Time 1pc/2.5sec 1pc/5sec
Machine Size Floor space
W x D (mm)		 800 x 1600*
Mass of Machine(kg) 400**
*
Depending on machine specifications, Machine size must be changed.
**
Depending on machine specifications, Mass of machine must be changed.
Machine Specification - PartsFeeder
PartsFeeder
Smaller / thin type work which cannot respond easily with hopper or work with different diameters is availiable.
Based on the number of the maximum work injections etc. as requet, the ball system etc. will be selected.
Please consult the connection with the line chute from the part feeder.
Flat belt type lift conveyor etc. various convance support equipments will be available.
PartsFeeder + Lift Conveyor
A06206 A06279
Example of
Target Range		 O.D.(φmm) 20 to 30 24 to 30
Width(mm) 14 to 25 20 to 32
Alignment Conditions Setting Cycle Time 1pc/2sec
Number of Supply Sequences 1
Rate of Achievement(%) 99.9
Presumption Noise Value(dB) 90
Machine Size Floor space
W x D (mm)		 970 x 910* 1050 x 1050*
Ball Diameter(φmm) 490* 640*
Mass of Machine(kg) ---** ---**
*
Depending on machine specifications, Machine size must be changed.
**
Depending on machine specifications, Mass of machine must be changed.
Machine Specification - Turntable
Turntable
Turntable is installed betwee pre-processing line and post-processing line etc. in many cases.
Various turn table is available as request; diameter of turn table or height of the machine etc.
Turntable
A06204 A06301
Example of
Target Range		 O.D.(φmm) 34 to 45 50 to 90
Width(mm) 7 to 12 15 to 24
Number of Supply Setting Cycle Time 1pc/2sec 1pc/4sec
Machine Size Floor space
W x D (mm)		 970 x 910* 1050 x 1050*
Disk diameter(φmm) 800* 1000*
Mass of Machine(kg) ---** ---**
*
Depending on machine specifications, Machine size must be changed.
**
Depending on machine specifications, Mass of machine must be changed.
