Single Purpose Lathe NS91T
Single Purpose Lathe NS91T
to PRODUCTS PAGE
to Cutting Process Machine PAGE
to Single Purpose Lathe NS82T PAGE
to Single Purpose Lathe NS91T PAGE
to CNC LATHE NC82T PAGE
to CNC LATHE NC91T PAGE
to CNC LATHE 1HNC PAGE
to CNC LATHE 2HNC PAGE
to CNC TURRET LATHE X39 PAGE
to Peripheral Unit PAGE
to MARKING PRESS PAGE
to MEASUREMENT UNIT PAGE
to WORKPOOL PAGE
to BELT TYPE STOCKER
to HOPPER & FEEDER PAGE
to Special Purpose Machine PAGE
to Roll Plastic Process Machinery PAGE
Space-saving
For space-saving, NS91T is designed to suppress the width of the bed from NS82T by 150mm, and to do the pitch between machines more compactly.
High durability
NS-Slide, made of especially strong cast iron and grinder finished after induction hardening.
NS-Headstock, with a structure of minimal expansion in the utilization of air pressure, but at the same time with a high degree of rigidity.
A great rigidity Tool Post, for a heavy plunge cutting by formed bite promises long tool-life and results in high hours of operation.
High speed
Our unique technologies, such as a high speed Autoloader (1.5sec or less) and Unloader (1sec or less), are included in NS91T.
NS91T is fully designed for one slide composition to compose the high-speed cutting line (cycle time 2s etc.).
Single Purpose Lathe NS91T
Machine Specification - Single Purpose Lathe NS91T
NS91T-8A NS91T-8 NS91T-10
Capacity Range O.D.(φmm) 20 to 45 30 to 72 40 to 120
Range W(mm) 40 (130*)
Main Spindle Diameter(φmm) 80 100
Bore(φmm) 51 65
Max speed(rpm) 4500 2000 1800
Slide Hydraulic NS150, NS200*, 200S*, etc
NC* NC200*, 200NN*, NC250A*, etc
Control device Mitsubishi A1S series, FX series
Other manufacturer possible to change to the user specification*
Chuck Outer grip chuck No2A-2
No3A-2, T
No4-2, -3T
No4A-2, -T, -2T		 No4-2, -3T
No4A-2, -T, -2T
Inner expansion collet Chuck SC1, etc
Chuck Cylinder Hydraulic C130FV C150FV
Autoloader Hydraulic N40S, N60S N40SA, N60SA
Unloader Pneumatic KT41-B*, -C*, -P*
Pusher Hydraulic PO-50*, PS-4*
Pneumatic PA-50*, PS-50*
Power Unit Main Spindle Motor Output 3.7, 5.5, 7.5kW
Hydraulic Pump
Pressure
Discharge		 2.2kW-4P
1.5 to 3.5Mpa
25L/min(50Hz), 30L/min(60Hz)
Lubricator 3W, 120min/2.5cc
Machine Size Floor space
W x D (mm)		 1200 x 2200**
Mass of Machine (t) 1.3*** 1.4***
*
Option
**
Depending on machine specifications, Machine size must be changed.
***
Depending on machine specifications, Mass of machine must be changed.

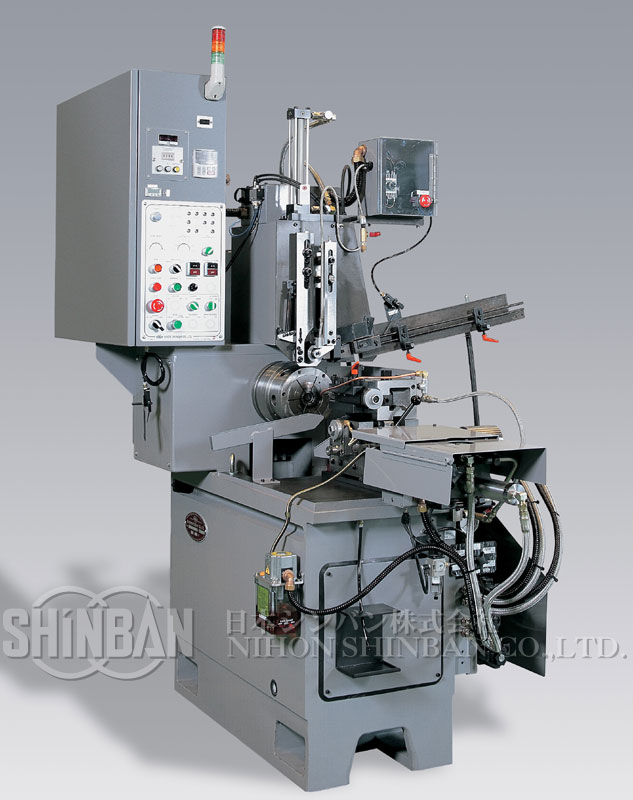

General view
NS91T Pendant type
NS91T all-in-one design
Pendant type
all-in-one design
Equipments
No3AT Outer grip chuck
PS4-R Hydraulic Pusher
No3AT Outer grip chuck
PS4-R Hydraulic Pusher
Back of NS91T
Reverse Device
Back of NS91T
Reverse Device
